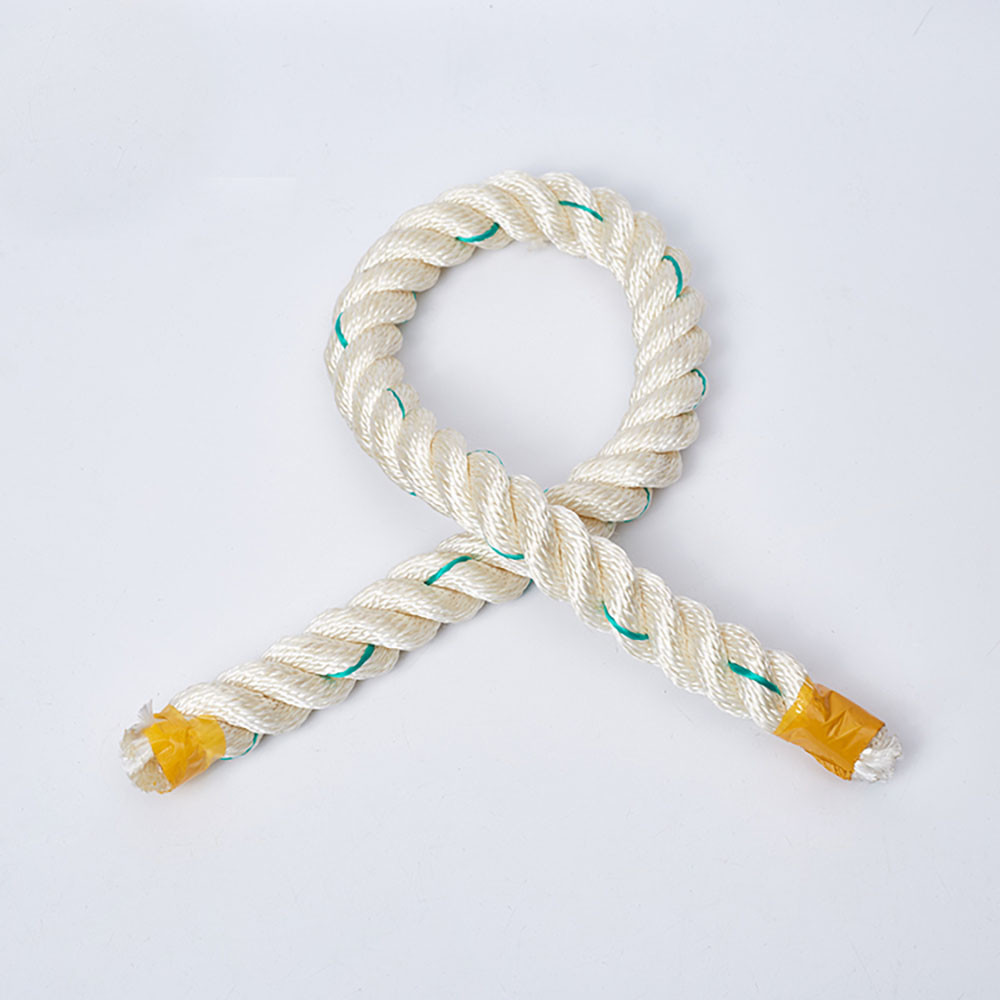

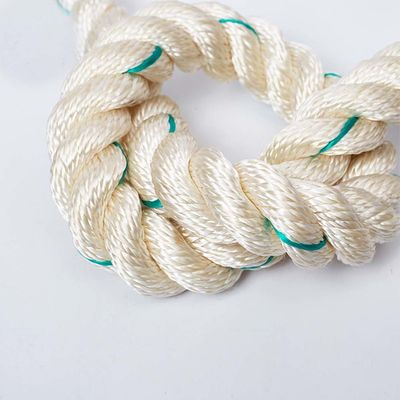

100% Nylon Three Strand Polyester Rope , Offshore Mooring 3 Strand Anchor Line

Basic Information
Place of Origin: china
Brand Name: GIRO
Certification: ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE
Model Number: nylon05
Minimum Order Quantity: 1
Price: USD 01-20/kg
Packaging Details: woven bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000kg/year
Material: 100% Nylon Color: White, Yellow,black, Etc.
Construction: 3/8/12/24 Strand Diameter: 4mm-72mm (diameter Can Be Customized)
Coil Length: 200m (length Can Be Customized) Application: For Offshore Mooring
High Light:

3 strand dock line

,

3 strand anchor line

3 strand twist 100% nylon rope polyamide mooring line for ship

Material: PP/Polyester/Nylon

Products Description: It has advantages of reasonable braided structure, high strength, low elongation, wearing resistance, easy to get a loop.

Application: Mooring line, anchor line, towing rope



Specification PA Multifilament PA PP Multifilament PP Monofilament Polyester PET/PP Mixed
Dia Cir Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN Ktex KN
4 1/2 10 3.7 10 2.6 6.3 2.3 6 2.1 12 2.9 7 2.8
6 3/4 22 7.9 22 6 18 6.5 17 5.9 27 5.6 17.5 6.8
8 1 40 13.8 40 10.9 32 11.4 30 10.4 48 10 31 11.9
10 1-1/4 62 21.2 62 15.7 47 16.8 45 15.3 76 15.6 48.5 18.2
12 1-1/2 89 30.1 89 24.1 68 23.9 65 21.7 110 22.3 69.9 25.7
14 1-3/4 121 40 121 33 95 32.9 90 29.9 148 31.2 95.1 34.7
16 2 159 51.9 158 425 121 40.7 115 37 195 39.8 124 44.8
18 2-1/4 200 64.3 200 53.9 155 51.9 148 47.2 245 49.8 157 56.1
20 2-1/2 247 79.2 247 66.7 189 62.6 180 56.9 303 62.3 194 68.7
22 2-3/4 299 94 299 80.4 231 75 220 68.2 367 74.7 235 82.1
24 3 355 112 355 96.3 273 87.7 260 79.7 437 89.6 279 96.3
26 3-1/4 417 129 417 111.5 320 101 305 92.2 512 105 328 113
28 3-1/2 484 149 484 127 373 115 355 105 594 120 380 130
30 3-3/4 555 169 555 143 425 132 405 120 682 134 437 148
32 4 632 192 632 161 483 146 460 132 778 154 497 167
36 1-1/2 800 240 800 200 614 182 585 166 982 190 629 210
40 5 987 294 987 241 756 221 720 201 1215 235 776 257
44 5-1/2 1190 351 1190 289 924 266 880 242 1468 275 939 308
48 6 1420 412 1420 338 1092 308 1042 280 1750 329 1110 364
52 6-1/2 1670 479 1670 393 1281 357 1220 325 2050 384 1320 424





Main Performance



Material Polyamide Multifilament Polyamide PP Multifilament PP Monofilament Polyester Polypropylene and Polyester Mixed
Spec.Density 1.14 1.14 0.91 0.91 1.38 0.95
not floating not floating floating floating not floating floating
Melting Point 215℃ 215℃ 165℃ 165℃ 260℃ 165/260℃
Abrasion Resistance Very Good Very Good Medium Medium Good Good
U.V.resistance Very Good Very Good Medium Medium Good Good
Temperature resistance 100℃ max 120℃ max 60℃ max 60℃ max 100℃ max 70℃ max
