| Place of Origin: | china |
|---|---|
| Brand Name: | GIRO |
| Certification: | ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE |
| Model Number: | uhmwpe01 |
| Minimum Order Quantity: | 1 |
| Price: | USD 01-20/kg |
| Packaging Details: | woven bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kg/year |
| Material: | UHMWPE Fiber | Name: | UHMWPE Mooring Rope |
|---|---|---|---|
| Construction: | 3/8/12/24 Strand | Diameter: | Customized |
| Coil Length: | Customized | Characteristic: | Strong, Anti-aging |
| High Light: | fiber mooring rope,hmpe mooring lines |
||

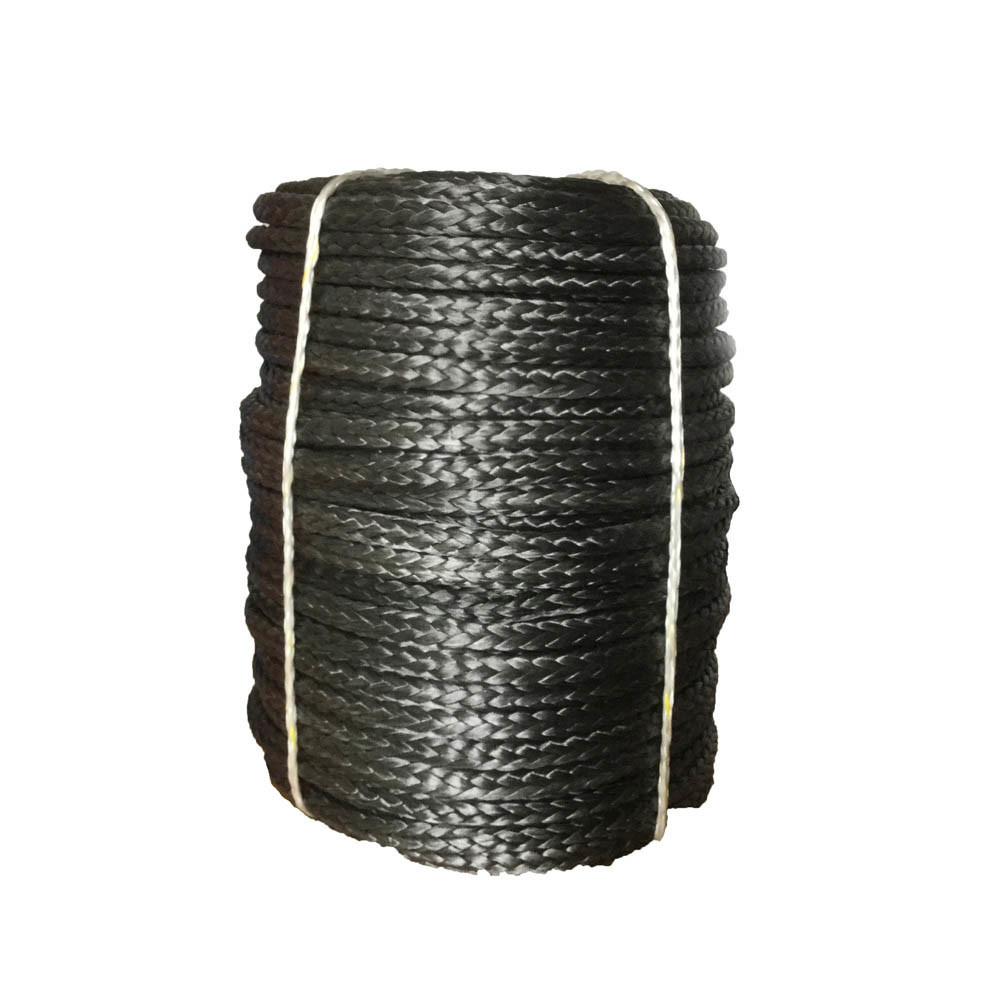

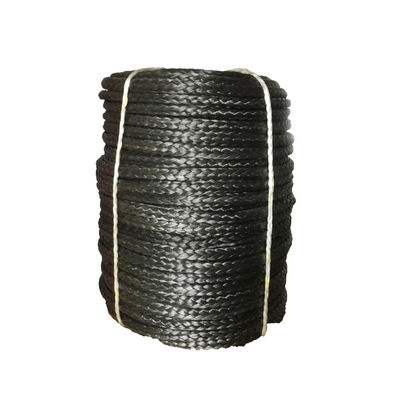

10mm x 100m uhmwpe fiber rope black color for winch offroad utv suv atv 4x4
Material: UHMWPE
Characteristics:
1-UHMWPE fiber woven
2-high tensile strength
3-can use any denier fiber, make any weight
4-UV,abrasion,water resistance
5-Non-Toxic
6-Good quality
7-Low coefficient of friction
8-UHMW exhibits virtually no water absorption
9. Corrosion resistant
10. Abrasion and impact resistant
11. Wear Resistant
12. Great liner material for industrial material handling application
| DIA | CIR | Linear Density | MBL(KN) | |
| MM | INCH | Ktex | Unspliced | Spliced |
| 6 | 3/4 | 23 | 46.5 | 42 |
| 8 | 1 | 37 | 73 | 66 |
| 10 | 1-1/4 | 56 | 105 | 95 |
| 12 | 1-1/2 | 79 | 145 | 131 |
| 14 | 1-3/4 | 106 | 193 | 174 |
| 16 | 2 | 151 | 260 | 235 |
| 18 | 2-1/4 | 190 | 310 | 283 |
| 20 | 2-1/2 | 232 | 380 | 340 |
| 22 | 2-3/4 | 281 | 450 | 400 |
| 24 | 3 | 331 | 520 | 470 |
| 26 | 3-1/4 | 384 | 600 | 540 |
| 28 | 3-1/2 | 445 | 680 | 610 |
| 30 | 3-3/4 | 506 | 770 | 690 |
| 32 | 4 | 575 | 870 | 780 |
| 34 | 4-1/4 | 648 | 960 | 860 |
| 36 | 4-1/2 | 720 | 1040 | 940 |
| 38 | 4-3/4 | 798 | 1160 | 1040 |
| 40 | 5 | 881 | 1260 | 1130 |
| 44 | 5-1/2 | 1060 | 1460 | 1310 |
| 48 | 6 | 1250 | 1700 | 1530 |
| 52 | 6-1/2 | 1460 | 1970 | 1770 |
| 56 | 7 | 1690 | 2260 | 2030 |
| 60 | 7-1/2 | 1930 | 2530 | 2280 |
| 64 | 8 | 2200 | 2840 | 2560 |
| 68 | 8-1/2 | 2480 | 3170 | 2850 |
| 72 | 9 | 2780 | 3520 | 3170 |
| 76 | 9-1/2 | 3090 | 3890 | 3500 |
| 80 | 10 | 3430 | 4300 | 3870 |
| 88 | 11 | 4170 | 5200 | 4680 |
| 96 | 12 | 4970 | 6180 | 5560 |
Main Performance
| Material | UHMWPE |
| Construction | 12 strand braided |
| Treatment | Marine finish,Offshore |
| Standard Color | Yellow(also available by special order in red,green,blue,orange and so on) |
| Approx.Spec.Density | 0.975 Floating |
| Melting Point | 145℃ |
| Vabrasion Resistance | Excellent |
| U.V.resistance | Good |
| Temperature resistance | 70℃ max continuous |
| Dry & wet conditions | wet strength equala dry strength |
| Range of use | fishing,off-shore installation,mooring |
| Coil length | 220m (length can be customized) |
| Spliced strength | ±10% |
| Weight and lengthtolerance | ±5% |
| MBL=Minimum Breaking Load | Conform Iso 2307 |
| Other sizes | Available upon request |
