Home ProductsUHMWPE Fiber Rope12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines

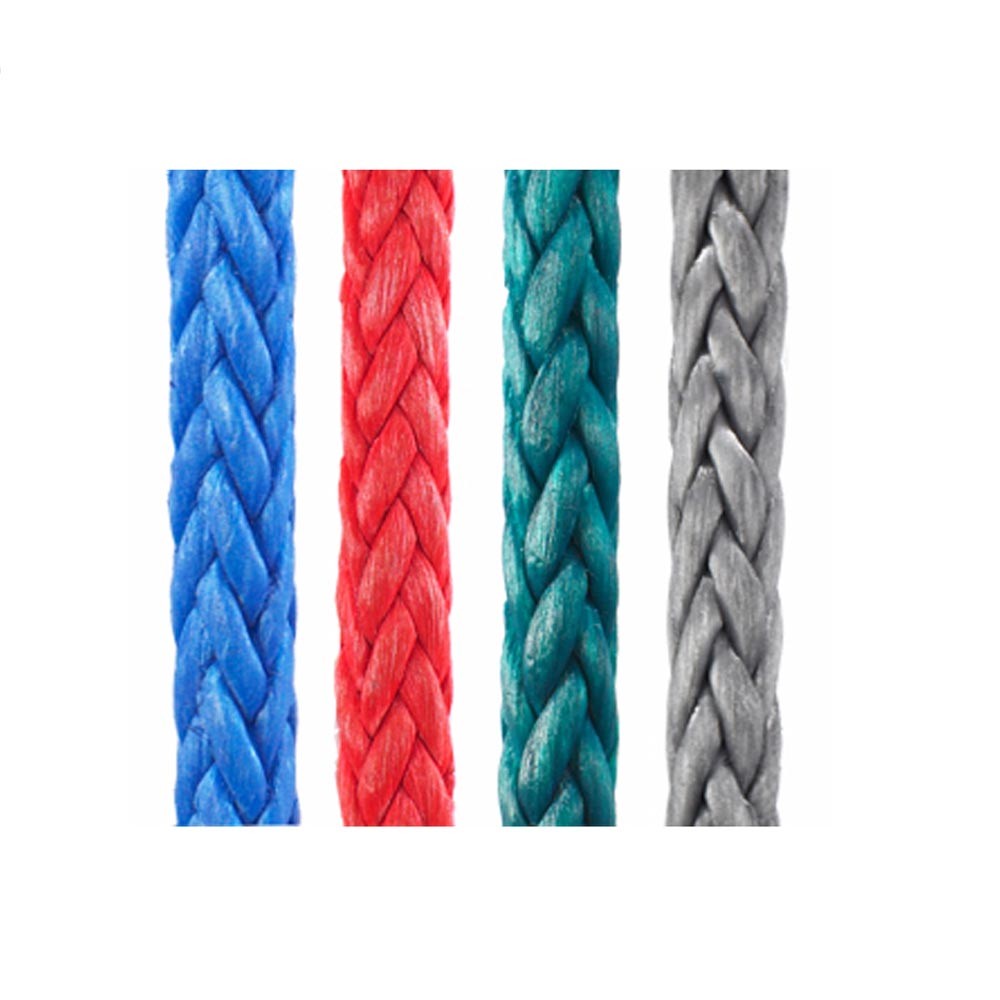

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines
12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines
Basic Information
Place of Origin: china
Brand Name: GIRO
Certification: ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE
Model Number: uhmwpe01
Minimum Order Quantity: 1
Price: USD 01-20/kg
Packaging Details: woven bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000kg/year
Contact Now
Material: UHMWPE Color: Blue\yellow\orange\ Red\ Green\ Gray
Melting Point: 145℃ Diameter: 10mm(diameter Can Be Customized)
Coil Length: 500m (length Can Be Customized) Application: Mooring Line, Anchor Line, Towing Rope
Highlight:

hmpe mooring lines

,

high strength rope

12 strand uhmwpe fiber rope Blue red green gray color high performance rope winch line



Material: UHMWPE



GIRO MAX is high quality UHMWPE rope product used for most demanding mooring, towing and lifting applications.



Features
· Material:UHMWPE yarns with special coating
· Strongest fiber rope in the world
· 14% of the wire rope weight in case of the same MBL
· Excellent resistance to UV and chemicals
· No difference in tensile strength when wet or dry
· Excellent abrasion resistance
· Elongation at break:4%
· Specific gravity:0.97



DIA CIR Linear Density MBL(KN)
MM INCH Ktex Unspliced Spliced
6 3/4 23 46.5 42
8 1 37 73 66
10 1-1/4 56 105 95
12 1-1/2 79 145 131
14 1-3/4 106 193 174
16 2 151 260 235
18 2-1/4 190 310 283
20 2-1/2 232 380 340
22 2-3/4 281 450 400
24 3 331 520 470
26 3-1/4 384 600 540
28 3-1/2 445 680 610
30 3-3/4 506 770 690
32 4 575 870 780
34 4-1/4 648 960 860
36 4-1/2 720 1040 940
38 4-3/4 798 1160 1040
40 5 881 1260 1130
44 5-1/2 1060 1460 1310
48 6 1250 1700 1530
52 6-1/2 1460 1970 1770
56 7 1690 2260 2030
60 7-1/2 1930 2530 2280
64 8 2200 2840 2560
68 8-1/2 2480 3170 2850
72 9 2780 3520 3170
76 9-1/2 3090 3890 3500
80 10 3430 4300 3870
88 11 4170 5200 4680
96 12 4970 6180 5560



Main Performance



Material UHMWPE
Construction 12 strand braided
Treatment Marine finish,Offshore
Standard Color Yellow(also available by special order in red,green,blue,orange and so on)
Melting Point 145℃
Vabrasion Resistance Excellent
U.V.resistance Good
Temperature resistance 70℃ max continuous
Dry & wet conditions wet strength equala dry strength
Range of use fishing,off-shore installation,mooring
Coil length 220m (length can be customized)
Spliced strength ±10%
Weight and lengthtolerance ±5%
MBL=Minimum Breaking Load Conform Iso 2307
Other sizes Available upon request



12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 012 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 112 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 2

Hot Sale Display

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 3

Workshop Show

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 4

Certifications

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 5

Packaging, Payment & Shipping

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 6

FAQ

12 Strand Supermax Plus Rope , Blue Red Green Gray Dyneema Mooring Lines 7
