| Place of Origin: | china |
|---|---|
| Brand Name: | GIRO |
| Certification: | ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE |
| Model Number: | uhmwpe01 |
| Minimum Order Quantity: | 1 |
| Price: | USD 01-20/kg |
| Packaging Details: | woven bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kg/year |
| Material: | UHMWPE Fiber | Construction: | 3/8/12/24 Strand |
|---|---|---|---|
| Diameter: | 64mm(diameter Can Be Customized) | Coil Length: | 150m (length Can Be Customized) |
| Package: | Woven Bag | Advantages: | Abrasion-Resistant ,Anti-Impact, High Strength ,Light Weight |
| High Light: | fiber mooring rope,high strength rope |
||

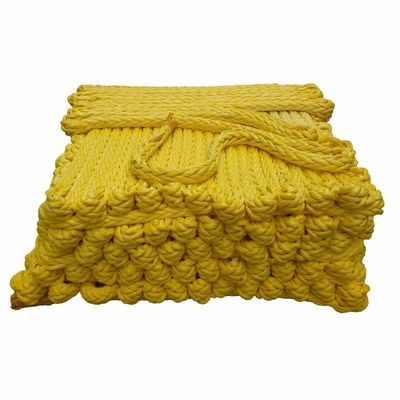

12 Strand UHMWPE Fiber Rope Tug Hawser 64mm x 150m Towing Line
Material: UHMWPE
GIRO MAX is high quality UHMWPE rope product used for most demanding mooring, towing and lifting applications. The advanced equipment from Germany and Denmark and the mature technology in rope manufacturig account for its high quality and stability.
Characteristic:
(1) Easy to handle, smooth on hands
(2) Stays flexibility throughout its life
(3) Specifically designed to provide excellent strength and shock absorbing
(4) Offers predictable and controlled elongation, stretch less
(5) UV-ray, oil, mildew, abrasion and rot resistant
(6) Water repellent and dry quickly, color retention
| DIA | CIR | Linear Density | MBL(KN) | |
| MM | INCH | Ktex | Unspliced | Spliced |
| 6 | 3/4 | 23 | 46.5 | 42 |
| 8 | 1 | 37 | 73 | 66 |
| 10 | 1-1/4 | 56 | 105 | 95 |
| 12 | 1-1/2 | 79 | 145 | 131 |
| 14 | 1-3/4 | 106 | 193 | 174 |
| 16 | 2 | 151 | 260 | 235 |
| 18 | 2-1/4 | 190 | 310 | 283 |
| 20 | 2-1/2 | 232 | 380 | 340 |
| 22 | 2-3/4 | 281 | 450 | 400 |
| 24 | 3 | 331 | 520 | 470 |
| 26 | 3-1/4 | 384 | 600 | 540 |
| 28 | 3-1/2 | 445 | 680 | 610 |
| 30 | 3-3/4 | 506 | 770 | 690 |
| 32 | 4 | 575 | 870 | 780 |
| 34 | 4-1/4 | 648 | 960 | 860 |
| 36 | 4-1/2 | 720 | 1040 | 940 |
| 38 | 4-3/4 | 798 | 1160 | 1040 |
| 40 | 5 | 881 | 1260 | 1130 |
| 44 | 5-1/2 | 1060 | 1460 | 1310 |
| 48 | 6 | 1250 | 1700 | 1530 |
| 52 | 6-1/2 | 1460 | 1970 | 1770 |
| 56 | 7 | 1690 | 2260 | 2030 |
| 60 | 7-1/2 | 1930 | 2530 | 2280 |
| 64 | 8 | 2200 | 2840 | 2560 |
| 68 | 8-1/2 | 2480 | 3170 | 2850 |
| 72 | 9 | 2780 | 3520 | 3170 |
| 76 | 9-1/2 | 3090 | 3890 | 3500 |
| 80 | 10 | 3430 | 4300 | 3870 |
| 88 | 11 | 4170 | 5200 | 4680 |
| 96 | 12 | 4970 | 6180 | 5560 |
Main Performance
| Material | UHMWPE |
| Construction | 12 strand braided |
| Treatment | Marine finish,Offshore |
| Standard Color | Yellow(also available by special order in red,green,blue,orange and so on) |
| Approx.Spec.Density | 0.975 Floating |
| Melting Point | 145℃ |
| Vabrasion Resistance | Excellent |
| U.V.resistance | Good |
| Temperature resistance | 70℃ max continuous |
| Dry & wet conditions | wet strength equala dry strength |
| Range of use | fishing,off-shore installation,mooring |
| Coil length | 220m (length can be customized) |
| Spliced strength | ±10% |
| Weight and lengthtolerance | ±5% |
| MBL=Minimum Breaking Load | Conform Iso 2307 |
| Other sizes | Available upon request |
