| Place of Origin: | china |
|---|---|
| Brand Name: | GIRO |
| Certification: | ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE |
| Model Number: | uhmwpe01 |
| Minimum Order Quantity: | 1 |
| Price: | USD 01-20/kg |
| Packaging Details: | woven bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kg/year |
| Material: | UHMWPE | Color: | White, Yellow,black, Etc. |
|---|---|---|---|
| Construction: | 3/8/12/24 Strand | Diameter: | 8mm(diameter Can Be Customized) |
| Feature: | UV Stabilized | Application: | Wire Rope Replacement |
| High Light: | hmpe mooring lines,high strength rope |
||

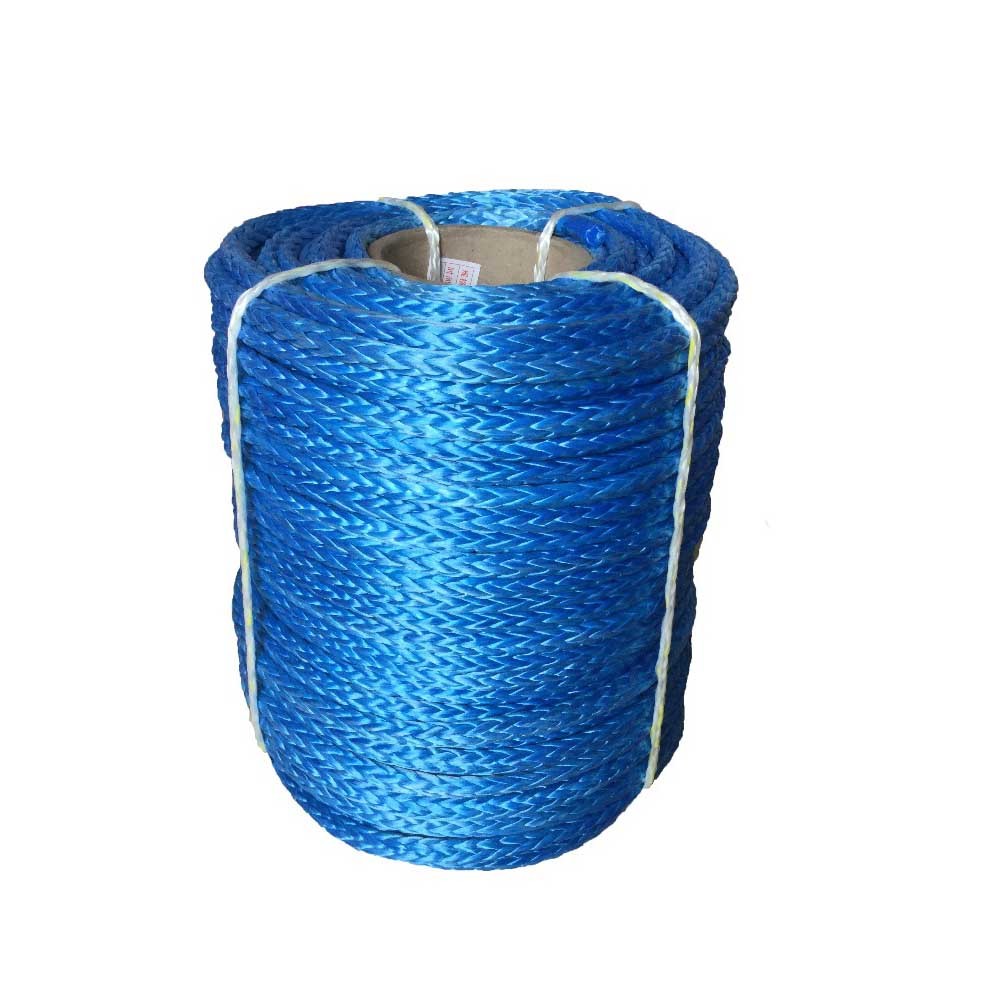

8mm x 200m uhmwpe fiber rope blue color for winch offroad utv suv atv 4x4
Material: UHMWPE
Advantage:
1.Material:uhmwpe fiber with special coating.
2.Strongest fiber rope in the world.
3.14% of the wire rope weight with the same MBL.
4.Superior abrasion resistance.
5.No difference in tensile strength when wet or day.
6.Good resistance to UV and chemicals.
7.Long durability.
8.Easy to handle.
Application:ATV/UTV winch,industry winch,wire rope replacement.
| DIA | CIR | Linear Density | MBL(KN) | |
| MM | INCH | Ktex | Unspliced | Spliced |
| 6 | 3/4 | 23 | 46.5 | 42 |
| 8 | 1 | 37 | 73 | 66 |
| 10 | 1-1/4 | 56 | 105 | 95 |
| 12 | 1-1/2 | 79 | 145 | 131 |
| 14 | 1-3/4 | 106 | 193 | 174 |
| 16 | 2 | 151 | 260 | 235 |
| 18 | 2-1/4 | 190 | 310 | 283 |
| 20 | 2-1/2 | 232 | 380 | 340 |
| 22 | 2-3/4 | 281 | 450 | 400 |
| 24 | 3 | 331 | 520 | 470 |
| 26 | 3-1/4 | 384 | 600 | 540 |
| 28 | 3-1/2 | 445 | 680 | 610 |
| 30 | 3-3/4 | 506 | 770 | 690 |
| 32 | 4 | 575 | 870 | 780 |
| 34 | 4-1/4 | 648 | 960 | 860 |
| 36 | 4-1/2 | 720 | 1040 | 940 |
| 38 | 4-3/4 | 798 | 1160 | 1040 |
| 40 | 5 | 881 | 1260 | 1130 |
| 44 | 5-1/2 | 1060 | 1460 | 1310 |
| 48 | 6 | 1250 | 1700 | 1530 |
| 52 | 6-1/2 | 1460 | 1970 | 1770 |
| 56 | 7 | 1690 | 2260 | 2030 |
| 60 | 7-1/2 | 1930 | 2530 | 2280 |
| 64 | 8 | 2200 | 2840 | 2560 |
| 68 | 8-1/2 | 2480 | 3170 | 2850 |
| 72 | 9 | 2780 | 3520 | 3170 |
| 76 | 9-1/2 | 3090 | 3890 | 3500 |
| 80 | 10 | 3430 | 4300 | 3870 |
| 88 | 11 | 4170 | 5200 | 4680 |
| 96 | 12 | 4970 | 6180 | 5560 |
Main Performance
| Material | UHMWPE |
| Construction | 12 strand braided |
| Treatment | Marine finish,Offshore |
| Standard Color | Yellow(also available by special order in red,green,blue,orange and so on) |
| Approx.Spec.Density | 0.975 Floating |
| Melting Point | 145℃ |
| Vabrasion Resistance | Excellent |
| U.V.resistance | Good |
| Temperature resistance | 70℃ max continuous |
| Dry & wet conditions | wet strength equala dry strength |
| Range of use | fishing,off-shore installation,mooring |
| Coil length | 220m (length can be customized) |
| Spliced strength | ±10% |
| Weight and lengthtolerance | ±5% |
| MBL=Minimum Breaking Load | Conform Iso 2307 |
| Other sizes | Available upon request |
