| Place of Origin: | china |
|---|---|
| Brand Name: | GIRO |
| Certification: | ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE |
| Model Number: | atlas01 |
| Minimum Order Quantity: | 1 |
| Price: | USD 01-20/kg |
| Packaging Details: | woven bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kg/year |
| Material: | Polyamide Mono And Multi | Diameter: | 32mm (Diameter Can Be Customized) |
|---|---|---|---|
| Coil Length: | 220m (length Can Be Customized) | Color: | White, Yellow,black, Etc. |
| Uses: | Marine Ship, Oil Tanker, Warships, Tugs, Oil Fields Etc | Characteristic: | High Strength, Wear Resistance, Durability, Mildew Resistance, Acid And Alkali Resistance, Simple And Light |
| High Light: | 6 strand rope,yacht mooring lines |
||

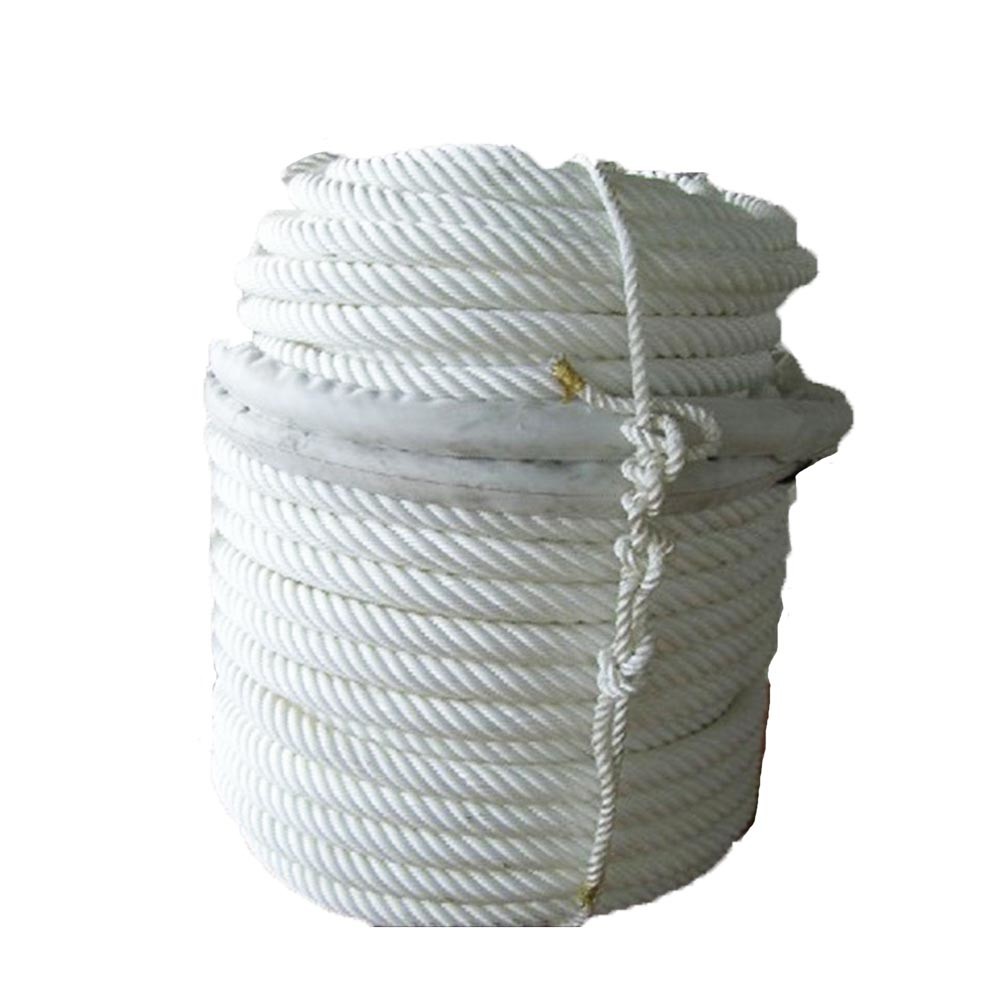

6 Strand Atlas Mooring Rope polyamide monofilament and polyamide multifilament mixed
Material: Polyamide Mono and Multi
When looking for a rope that can be used in a wide range of applications in the marine industry such as dock line, sailing line, main sheet line, atlas mooring rope will cover your needs.The polyamide 6- strand sheath (cover) will protect you from abrasion and heavy wear, while the 12 strand core of the rope will hold the majority of the strength. The polyamide is fast drying and excellent under heavy UV conditions. A well taken care of polyester rope will last you a long time.The polyeamide core offers an inner braid of a 6-strand or 12/24 strand construction, or hollow braid, for high strength retaining a melting point of 215℃. Polyamide is self extinguishing fibers.
| DIA | CIR | Linear Density | MBL |
| MM | INCH | Ktex | KN |
| 18 | 2-1/4 | 220 | 84.4 |
| 20 | 2-1/2 | 275 | 107 |
| 22 | 2-3/4 | 345 | 133 |
| 24 | 3 | 400 | 154 |
| 26 | 3-1/4 | 465 | 179 |
| 28 | 3-1/2 | 515 | 197 |
| 32 | 4 | 650 | 248 |
| 36 | 4-1/2 | 832 | 314 |
| 40 | 5 | 1000 | 377 |
| 44 | 5-1/2 | 1250 | 491 |
| 48 | 6 | 1480 | 579 |
| 52 | 6-1/2 | 1600 | 625 |
| 56 | 7 | 2000 | 770 |
| 60 | 7-1/2 | 2170 | 839 |
| 62 | 7-3/4 | 2350 | 910 |
| 64 | 8 | 2450 | 952 |
| 68 | 8-1/2 | 2800 | 1079 |
| 70 | 8-3/4 | 3100 | 1197 |
| 72 | 9 | 3350 | 1246 |
| 78 | 9-3/4 | 3640 | 1334 |
| 80 | 10 | 3840 | 1445 |
| 84 | 10-1/2 | 4250 | 1550 |
| 88 | 11 | 4720 | 1730 |
| 90 | 11-1/4 | 5050 | 1825 |
| 96 | 12 | 5850 | 2109 |
Main Performance
| Material | 100% high tenacity nylon 66(mono-and multi-filament) |
| Construction | 6strand twist |
| Treatment | Ocean |
| Colour of Rope | white with marker yarn |
| Approx.Spec.Density | 1.14 Non floating |
| Maclting Point | 215℃ |
| Abrasion Resistance | Excellent |
| U.V.Resistance | Excellent |
| Temperature resistance | 70℃ max |
| Dry & wet conditions | Can be stowed wet |
| Range of use | As winch lines,mooring lines,anchor lines and heavy duty |
| Coil length | 220m (length can be customized) |
| Spliced strength | ±10% |
| Weight and length tolerance | ±5% |
| MBL=Minimum Breaking Load | Conform Iso 2307 |
| Other sizes | Available upon request |
