| Place of Origin: | china |
|---|---|
| Brand Name: | GIRO |
| Certification: | ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE |
| Model Number: | atlas01 |
| Minimum Order Quantity: | 1 |
| Price: | USD 01-20/kg |
| Packaging Details: | woven bag |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000kg/year |
| Features: | High Mechanical Strength | Material: | Polyamide Mono And Multi |
|---|---|---|---|
| Diameter: | 72mm (Diameter Can Be Customized) | Coil Length: | 220m (length Can Be Customized) |
| Construction: | 3/8/12/24 Strand | Application: | Shipbuilding, Ocean Transportation, National Defense And Military Industry, Sea Petroleum And Harbor Operation Etc. |
| High Light: | 6 strand rope,yacht mooring lines |
||

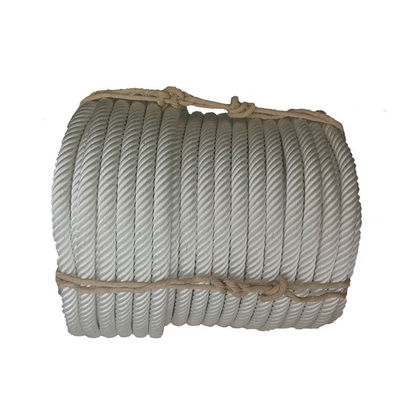

Polyamide Mono and Multi Rope Altas 12 Strand Cross-laid 72mm 9" Cir x 220 Mtrs Mooring Rope
Material: Polyamide Mono and Multi
Diameter: 72mm/9inch
Length: 220m/720ft
Application:
The products are mainly used in fields of shipbuilding, ocean transportation, national defense and military industry, sea petroleum and harbor operation etc.
| DIA | CIR | Linear Density | MBL |
| MM | INCH | Ktex | KN |
| 18 | 2-1/4 | 220 | 84.4 |
| 20 | 2-1/2 | 275 | 107 |
| 22 | 2-3/4 | 345 | 133 |
| 24 | 3 | 400 | 154 |
| 26 | 3-1/4 | 465 | 179 |
| 28 | 3-1/2 | 515 | 197 |
| 32 | 4 | 650 | 248 |
| 36 | 4-1/2 | 832 | 314 |
| 40 | 5 | 1000 | 377 |
| 44 | 5-1/2 | 1250 | 491 |
| 48 | 6 | 1480 | 579 |
| 52 | 6-1/2 | 1600 | 625 |
| 56 | 7 | 2000 | 770 |
| 60 | 7-1/2 | 2170 | 839 |
| 62 | 7-3/4 | 2350 | 910 |
| 64 | 8 | 2450 | 952 |
| 68 | 8-1/2 | 2800 | 1079 |
| 70 | 8-3/4 | 3100 | 1197 |
| 72 | 9 | 3350 | 1246 |
| 78 | 9-3/4 | 3640 | 1334 |
| 80 | 10 | 3840 | 1445 |
| 84 | 10-1/2 | 4250 | 1550 |
| 88 | 11 | 4720 | 1730 |
| 90 | 11-1/4 | 5050 | 1825 |
| 96 | 12 | 5850 | 2109 |
Main Performance
| Material | 100% high tenacity nylon 66(mono-and multi-filament) |
| Construction | 6strand twist |
| Treatment | Ocean |
| Colour of Rope | white with marker yarn |
| Approx.Spec.Density | 1.14 Non floating |
| Maclting Point | 215℃ |
| Abrasion Resistance | Excellent |
| U.V.Resistance | Excellent |
| Temperature resistance | 70℃ max |
| Dry & wet conditions | Can be stowed wet |
| Range of use | As winch lines,mooring lines,anchor lines and heavy duty |
| Coil length | 220m (length can be customized) |
| Spliced strength | ±10% |
| Weight and length tolerance | ±5% |
| MBL=Minimum Breaking Load | Conform Iso 2307 |
| Other sizes | Available upon request |
