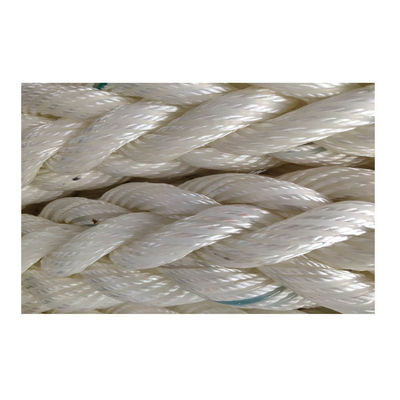

White Nylon Floating Mooring Line , Large Ships Mooring Ropes With Marker Yarn

Basic Information
Place of Origin: china
Brand Name: GIRO
Certification: ABS/LR/BV/DNV-GL/RINA/RS/CCS/NK/TEST CERTIFICATE
Model Number: atlas01
Minimum Order Quantity: 1
Price: USD 01-20/kg
Packaging Details: woven bag
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10000kg/year
Features: Softness & Smooth Material: Polyamide Mono And Multi
Diameter: 60mm (Diameter Can Be Customized) Coil Length: 220m (length Can Be Customized)
Construction: 3/8/12/24 Strand Color: White With Marker Yarn
High Light:

yacht mooring lines

,

mooring hawser rope

12 strand white nylon composite ATLAS rope for tugboat 220m long



Material:100% high tenacity polyamde monofilaments and multifilaments


GIRO-6 is a six-strand construction rope made of 100% high tenacity polyamide monofilaments and multifilaments combined to contribute to its high performance in good resistance, long-term stiffness and high breaking loads. GIRO-6 is compact, maintenance-free and can be used in wide range of heavy-duty application. GIRO-6 is your ideal choice for container vessels and bulk carriers.



DIA CIR Linear Density MBL
MM INCH Ktex KN
18 2-1/4 220 84.4
20 2-1/2 275 107
22 2-3/4 345 133
24 3 400 154
26 3-1/4 465 179
28 3-1/2 515 197
32 4 650 248
36 4-1/2 832 314
40 5 1000 377
44 5-1/2 1250 491
48 6 1480 579
52 6-1/2 1600 625
56 7 2000 770
60 7-1/2 2170 839
62 7-3/4 2350 910
64 8 2450 952
68 8-1/2 2800 1079
70 8-3/4 3100 1197
72 9 3350 1246
78 9-3/4 3640 1334
80 10 3840 1445
84 10-1/2 4250 1550
88 11 4720 1730
90 11-1/4 5050 1825
96 12 5850 2109


Main Performance

Material 100% high tenacity nylon 66(mono-and multi-filament)
Construction 6strand twist
Treatment Ocean
Colour of Rope white with marker yarn
Approx.Spec.Density 1.14 Non floating
Maclting Point 215℃
Abrasion Resistance Excellent
U.V.Resistance Excellent
Temperature resistance 70℃ max
Dry & wet conditions Can be stowed wet
Range of use As winch lines,mooring lines,anchor lines and heavy duty
Coil length 220m (length can be customized)
Spliced strength ±10%
Weight and length tolerance ±5%
MBL=Minimum Breaking Load Conform Iso 2307
Other sizes Available upon request
